Product : ‘SBM’ Bronze Union Bonnet Horizontal Lift Check Valve
Product Standard : Conforming to IS:778 Class 2
Pressure/Class/Rating : PN 25
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed on cover
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI410
End Details : Screwed Female BSP Threads Parallel to BS 21
Body Test Pressure : 42Kg/cm²g Hyd. (600Psig. Hyd.)
Seat Test Pressure : 25Kg/cm²g Hyd. (355Psig. Hyd.)
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Union Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Body Seat Ring, Valve Disc | Stainless Steel | AISI410 |

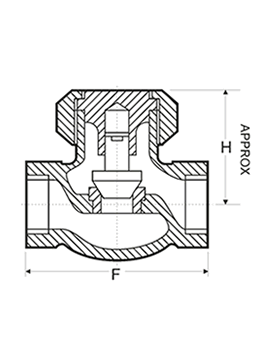

| Nominal Size | Nominal Size (Inches) | F | H |
|---|---|---|---|
| 15 | 1/2 | 70 | 45 |
| 20 | 3/4 | 85 | 51 |
| 25 | 1 | 100 | 60 |
| 32 | 1.1/4 | 115 | 70 |
| 40 | 1.1/2 | 125 | 80 |
| 50 | 2 | 150 | 90 |
| 65 | 2.1/2 | 180 | 100 |
| 80 | 3 | 200 | 120 |
| 100 | 4 | 250 | 145 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
