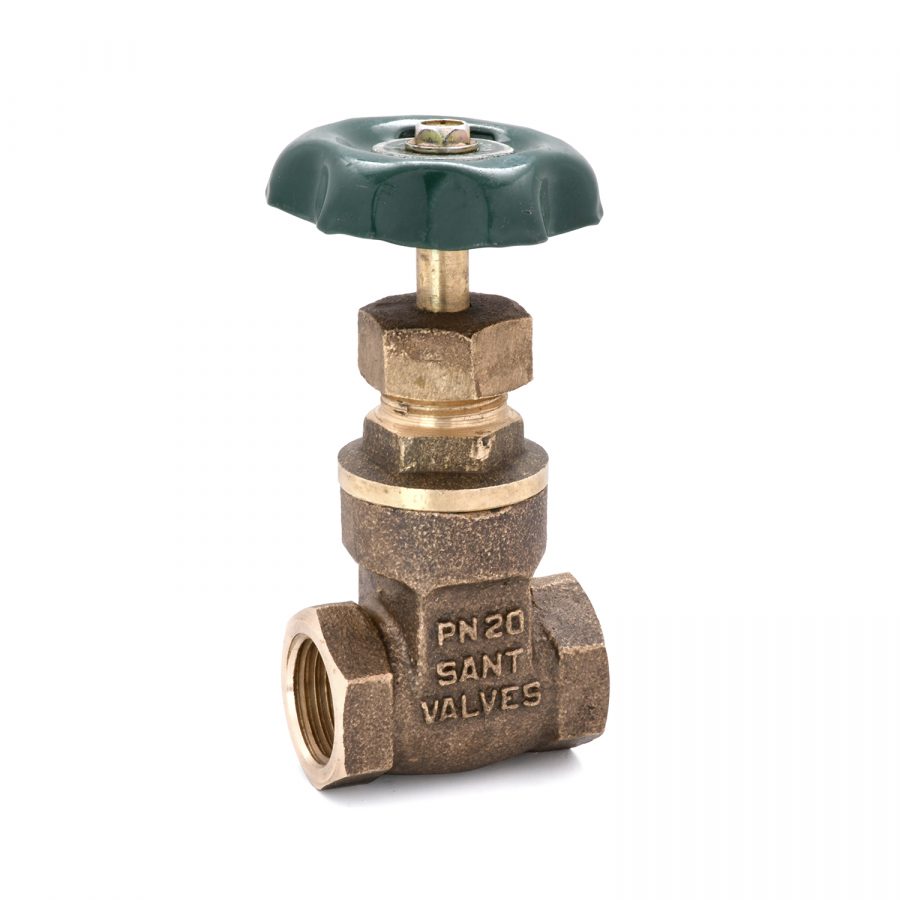

Product : ‘SBM’ Bronze Gate Valve
Type of Pattern : Standard Pattern
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Bonnet, Inside Screw, Non-Rising Stem
Type of Seat : Integral seat
Type of Wedge : Solid wedge
Trim : Cu-Alloy
Gland Packing : Expanded Pure Flexible Graphite
End Details : Screwed female BSP threads to BS 21.
Body Test Pressure : 30.60kg/cm²g Hyd. (435 lbs/inch²) Hyd.
Seat Test Pressure : 20.40kg/cm²g Hyd. (290 lbs/inch²) Hyd.
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Wedge, Gland & Gland Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Stem | Forged Brass | IS:6912 FLB |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Handwheel | Cast Iron / Steel | IS:210 Gr.FG200 |
| Screw & Washer for Handwheel | Mild Steel | — |

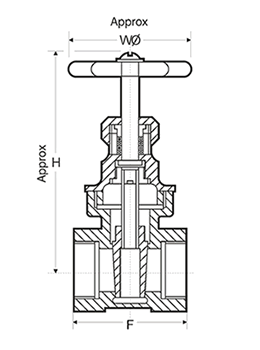

| Nominal Size | Nominal Size (Inches) | F | H | W |
|---|---|---|---|---|
| 8 | 1/4 | 43 | 90 | 50 |
| 10 | 3/8 | 43 | 95 | 50 |
| 15 | 1/2 | 54 | 100 | 60 |
| 20 | 3/4 | 60 | 125 | 60 |
| 25 | 1 | 65 | 135 | 65 |
| 32 | 1.1/4 | 75 | 145 | 80 |
| 40 | 1.1/2 | 83 | 160 | 80 |
| 50 | 2 | 92 | 185 | 90 |
| 65 | 2.1/2 | 105 | 215 | 105 |
| 80 | 3 | 125 | 265 | 115 |
| 100 | 4 | 140 | 310 | 145 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
