Product Certification
UL Listed / FM Approved (EX 26523)
Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12
Gaskets
Grade E EPDM with Temperature Range from -34 to +150°C
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16
Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8
Finishing
Epoxy Red Paint RAL – 3000/3001

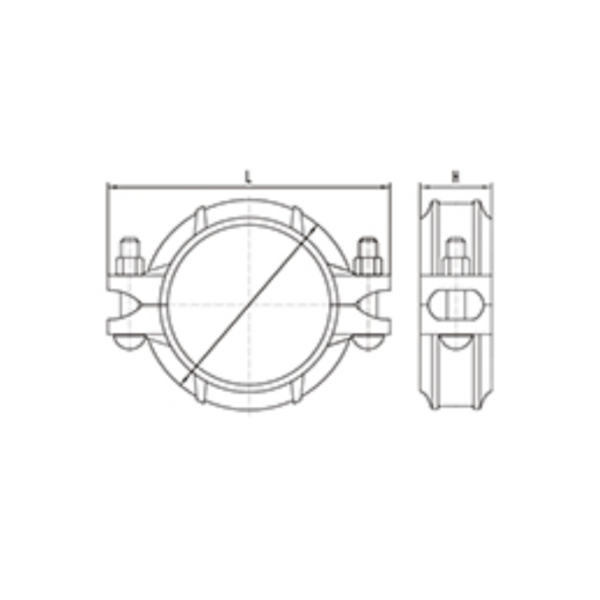

| Nominal Size | Nominal Size (Inch) | Pipe O.D. | Bolt Size (No. – Size) | ∅ | L | H |
|---|---|---|---|---|---|---|
| 25 | 1 | 33.7 | 2-M10*45 | 55.6 | 98 | 44 |
| 32 | 1.1/4 | 42.4 | 2-M10*45 | 66 | 107 | 44 |
| 40 | 1.1/2 | 48.3 | 2-M10*45 | 74 | 115 | 44 |
| 50 | 2 | 60.3 | 2-M10*55 | 88.4 | 125 | 46 |
| 65 | 2.1/2 | 76.1 | 2-M10*55 | 102.2 | 140 | 46 |
| 80 | 3 | 88.9 | 2-M10*60 | 117.4 | 154 | 46 |
| 100 | 4 | 114.3 | 2-M12*70 | 146.6 | 190 | 48 |
| 125 | 5 | 139.7 | 2-M12*75 | 171.2 | 220 | 48 |
| 150 | 6 | 165.1 | 2-M12*75 | 196.2 | 244 | 48 |
| 200 | 8 | 219.1 | 2-M16*85 | 256.4 | 326 | 58 |
| 250 | 10 | 273.0 | 2-M20*100 | 316 | 426 | 64 |
| 300 | 12 | 323.9 | 2-M20*120 | 380 | 470 | 65 |
