XGQT03 Equal Tee

XGQT03 - Equal Tee

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

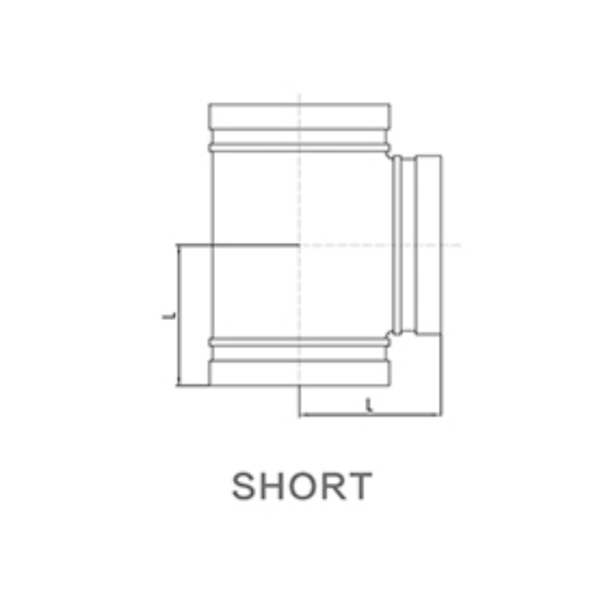

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. L (Short)
25 1 33.7 48
32 1.1/4 42.4 50
40 1.1/2 48.3 55
50 2 60.3 60
65 2.1/2 76.1 76
80 3 88.9 77
100 4 114.3 102
125 5 139.7 122
150 6 165.1 140
200 8 219.1 156
250 10 273.0 190
300 12 323.9 230
