Product Standard
As per IS:1239 (PART2): 1992 Screwed BSP Ends.
The carbon steel used in drop forged steel pipe fittings contains sulphur and phosphorus not exceeding 0.06% each.
End Connections
Screwed Female Ends conform to BSP as per BS21 / IS:554.
Other types of threads i.e. NPT can be given on request.
Test Pressure
IS:1239 (PART2) 1992-Pipe Fittings are tested to 1000 psig. (Hyd.)

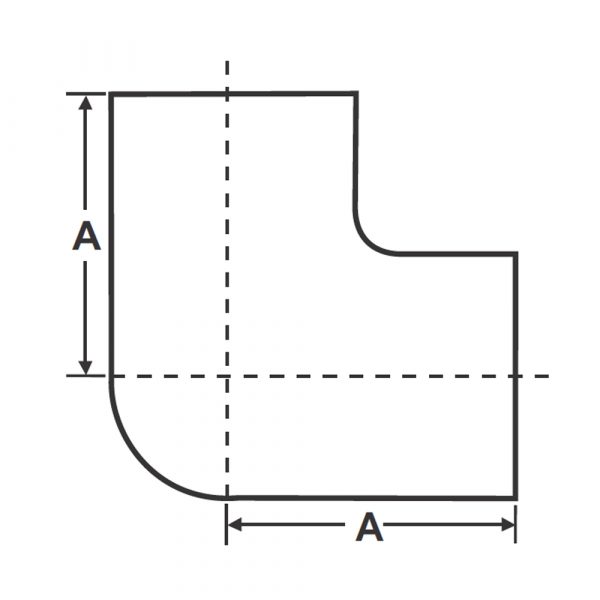

| Nominal Size of Outlet | Minimum Length Center to Face (A) |
|---|---|
| 8 | 22 |
| 10 | 24 |
| 15 | 32 |
| 20 | 35 |
| 25 | 43 |
| 32 | 51 |
| 40 | 52 |
| 50 | 64 |
| 65 | 76 |
| 80 | 89 |
